Setting up a new Lobby display

Show room availability and bookings on a shared lobby screen.

The Lobby Display shows availability and bookings for a selection of rooms on one screen. It runs in a browser on the display device.

1. Add a new device

In the YAROOMS web app, go to Settings → Integrations and open Lobby Display under YAROOMS apps. Click Add to create a new device entry. Configure its details and design before connecting the display.

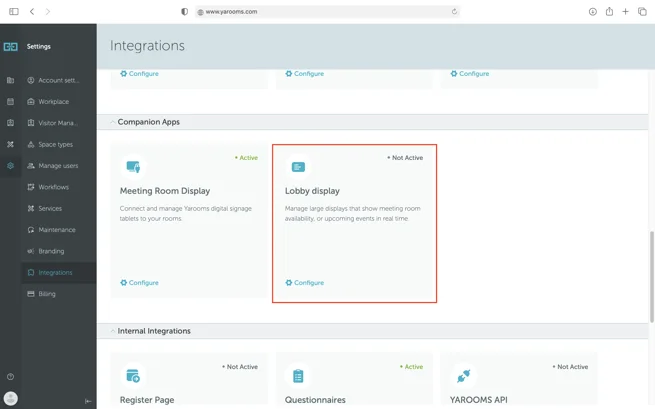

Lobby Display highlighted in Settings Integrations

2. Choose the rooms

In the Details tab:

  • Enter a recognizable Name for the display.
  • Select the display’s Language.
  • Under Spaces, choose the Location and select the rooms whose schedules should appear.

Assign at least one room, up to a maximum of 12. The example below includes Camden, Regent, and Thames.

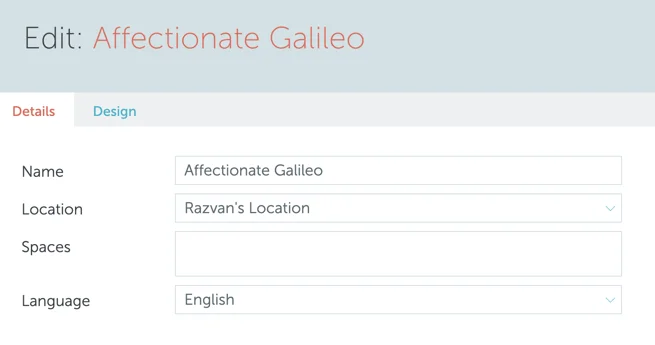

Lobby Display Details tab with the name, language, location, and selected rooms

3. Customize the design

Open the Design tab and use the Preview to check the layout.

  • Title: Set the heading shown on the lobby display.
  • Display type: Choose List or Cards, illustrated below.
  • Hide booking title and Hide booker: Control whether meeting titles and booker names are shown.
  • Time format: Choose how times appear.
  • Free card color and Busy card color: Set the colors used to distinguish available and occupied rooms. These also apply to list entries.
  • Background color and Background image: Customize the display’s background.
  • Custom CSS: Optionally add styling adjustments.

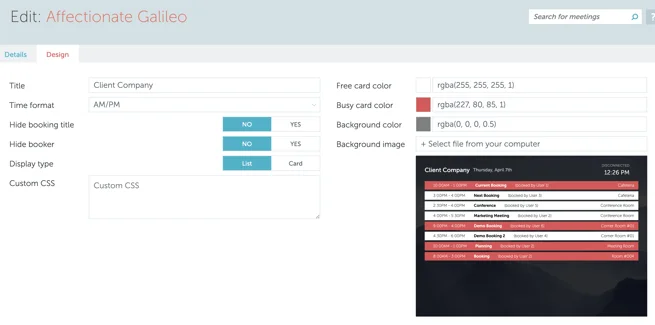

Lobby Display Design tab with layout, privacy, colors, background, and preview settings

For screens visible to visitors, consider hiding booking titles and booker names so meeting details are not displayed publicly.

Click Save when the room selection and design are ready. YAROOMS then shows the Connect a device page.

4. Connect and activate the display

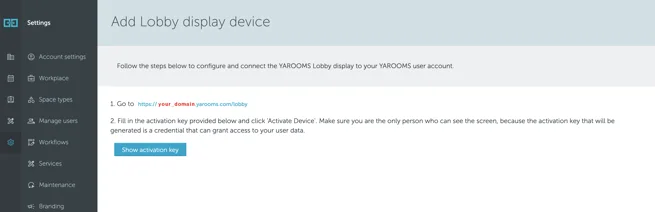

The Connect a device page provides your account’s lobby URL and an Activation key for the device entry you just configured.

Connect a device page with the lobby URL, Open link, and activation key

  1. Open the provided URL in the browser that will show the lobby display, or click Open next to the URL to open it from this page. The address follows the format https://company.yarooms.com/lobby, where company.yarooms.com is your organization’s actual YAROOMS account address.
  2. Enter the 8-character activation key shown on the Connect a device page.
  3. Click Activate device. The browser now shows the lobby view using the rooms and design you configured.

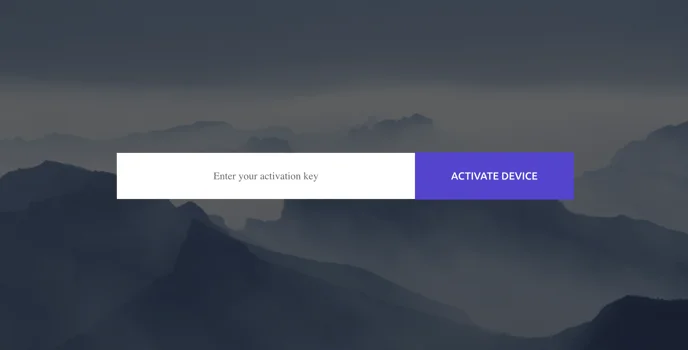

Lobby activation screen with the activation key field and Activate device button

Warning: Treat the activation key as a credential. Keep it private and enter it only on the device you intend to connect to your account.

Check that the lobby view shows the intended rooms and CONNECTED status, as in the examples below.

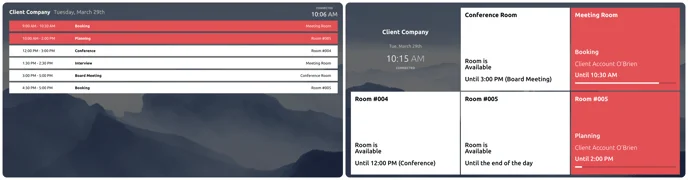

Display types

List

List shows bookings in chronological order by start time, with the booking time and room name. Booking titles and booker names are shown unless you hide them in the design settings.

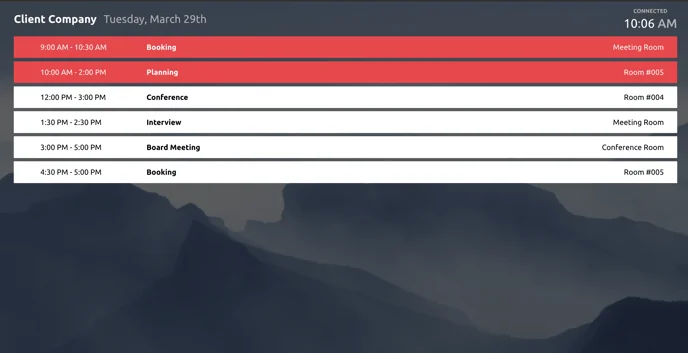

Lobby Display List view showing booking times, meeting details, and room names

Cards

Cards shows a separate card for each assigned room. Busy rooms use the Busy card color and show the current booking, while available rooms use the Free card color and show how long the room is available.

Lobby Display Cards view showing busy Camden and Thames rooms and available Regent room
