Setting up your office without a map

This article explains how to create floors and bookable spaces without the office map.

1. How to create floors without a map

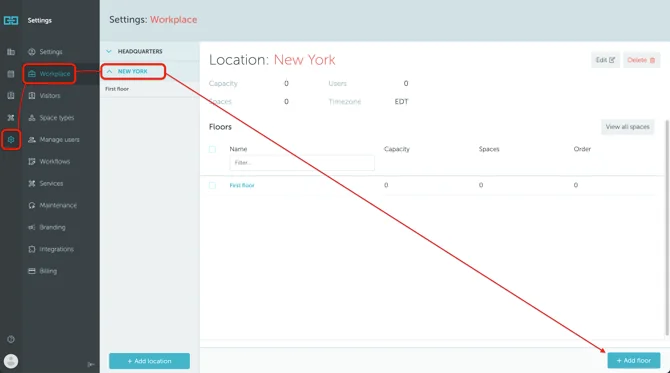

You can create bookable spaces without uploading a floor plan. Start in Settings > Workplace and select the location where you want to add a floor.

If you have not created a location yet, follow Setting up your office first.

Click Add floor. In the General tab, enter the floor’s Name. Leave the Floor map tab without an image, then click Add floor to save. You do not need to set a capacity limit to create the floor.

Warning: Capacity is an optional booking restriction, not the number of desks on the floor. If you have 50 desks and set Capacity to 25, once 25 desks are booked at the same time, the remaining desks appear grey and unavailable for that time, even if they have no bookings. Leave this setting at its default unless you intentionally want to impose a limit.

Add floor form showing an example optional capacity limit, without a floor plan

Repeat the same process for any additional floors. You do not need a separate setup flow for the first floor.

You can add a floor plan later. Open the floor in Settings > Workplace, upload its map, then place your spaces on it.

2. How to create spaces without a map

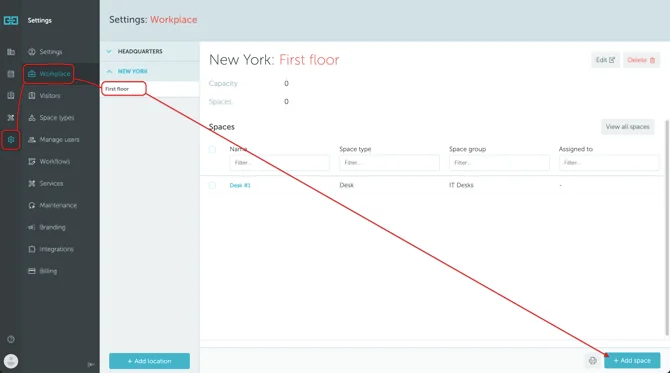

Select the floor in Settings > Workplace, then click Add space above the spaces list or in the top-right corner.

Floor settings without an uploaded map, with Add space highlighted

In the Details tab:

  1. Choose the Space type and Space group. These determine the space’s behavior and booking rules.
  2. Check the Location and Floor.
  3. Enter a Name and select any applicable features.
  4. Leave Position on floor map (X-Y) blank. Coordinates are not required when you are not using a map.
  5. Click Add space.

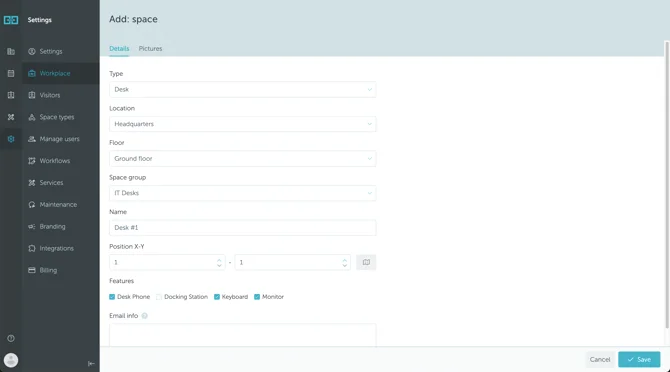

Add space form for a desk on a floor without a map

Repeat these steps for the remaining spaces. To adjust their shared rules, see space types and groups.

Go to Workplace > Timeline and select the location and floor to see the spaces you created.

New desk visible in Timeline without a floor plan

Note: Spaces without a floor plan can be used in Timeline, but will not appear in Map view until a map is uploaded and the spaces are placed on it.
